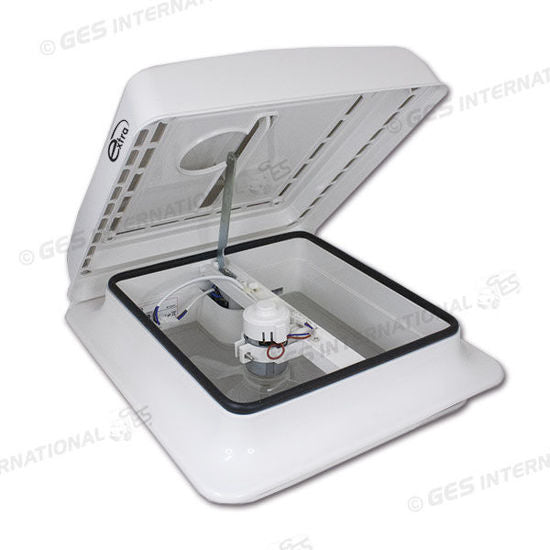

ExtraFAN 28 Porthole

Description

Porthole  ExtraFAN 28 x 28 cm with 12 V ventilation equipped with a switch for selecting the fan's rotation direction (IN-OUT).
Available with a White or Transparent dome and with a removable, easy-to-clean mosquito net.
UV resistant, it functions as both a fan and an extractor. Ideal for sanitary areas and showers.

Gasket included.



Overall dimensions	358 (W) x 363 (D) mm
Opening dimensions	282 x 282 mm
Weight	2.3 kg
Above the roof	85±1 mm
Roof thickness	30-60 mm
Power supply	12V
Absorption	0.25 A
Power	3 W
Maximum opening angle	≤ 50°
Forced ventilation area	160 cm²
Air volume	10-15 m²
